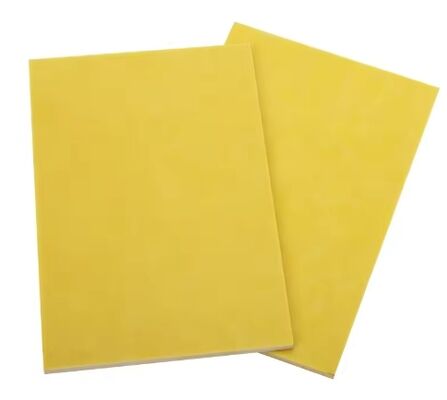

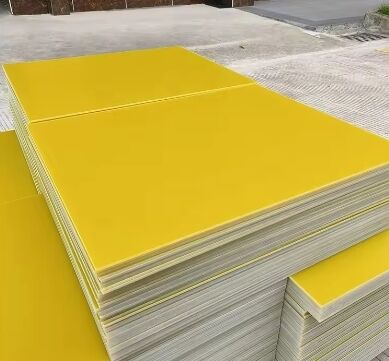

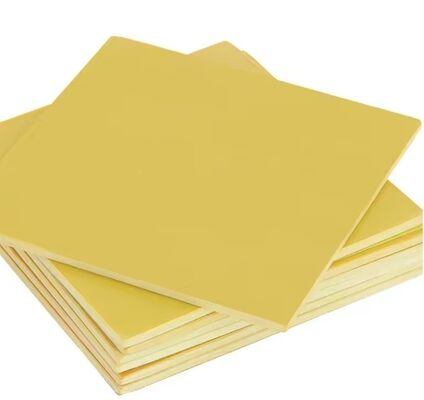

3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments

3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments
3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments
3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments 3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments 3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments 3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments 3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments

Grote Afbeelding :  3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments

Productdetails:
Plaats van herkomst: China
Modelnummer: 3240
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 KG
Prijs: basing on size and quantity
Verpakking Details: Pallet
Levertijd: GUA
Betalingscondities: T/T
Levering vermogen: 200000 kg per maand
Contact

3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments

beschrijving
materiaal: Fenolische epoxyhars en glasvezels Maat: 102 X 202 cm / 102 X 122 cm / 122 X 204 cm / 122 X 244 cm
Dikte: 0,2-101,6 mm Dikte: 10,8-2,0 g/cm3
Temp. index: 120℃ Ontvlambaarheid: HB
Isolatieweerstand (normaal): ≥5,0×10^12 Ω sollicitatie: Van toepassing op mechanische, elektrische, elektronische en andere velden
Markeren:

3240 epoxy phenolic insulation board

,

electrical insulation board for harsh environments

,

phenolic resin insulation board with warranty

3240 Insulation Board Epoxy Phenolic Resin
Product Overview
The 3240 Insulation Board is manufactured from alkali-free glass fiber cloth and epoxy phenolic resin, cured under high temperature and pressure. This construction delivers excellent electrical insulation and mechanical strength with a Class B thermal rating. Designed to perform reliably in demanding conditions including high temperature, humidity, and oil immersion environments. Widely utilized in motors, transformers, and electrical insulation components.
Technical Specifications
Color Yellow
Shape Board
Temperature Index 120℃
Flammability HB
Key Advantages
  • Exceptional Dielectric Strength
    Maintains ≥14.2 kV/mm and low permittivity, ensuring reliable insulation with minimal energy loss.
  • High Mechanical Reliability
    Density ≥1.8 g/cm³ and robust structural design provide long-lasting performance in demanding environments.
  • Smooth, Discharge-Resistant Surface
    Uniform, defect-free finish reduces partial discharge risk and simplifies installation.
Industrial Applications
  • Transformer Insulation
    Excellent parallel and perpendicular dielectric strength supports reliable insulation in transformer core and winding structures.
  • Switchgear Components
    Engineered for high mechanical durability and impact resistance in electrically stressful switchgear applications.
  • Busbar Support Systems
    Ensures stable electrical performance with low and consistent permittivity, ideal for secure busbar mounting and power distribution.
3240 Insulation Board Epoxy Phenolic Resin Suitable For Harsh Environments 0

label:

Elektrische isolatieplaat Temperatuurbestendig,

industriële elektrische isolatieplaat 0,

2 mm
